Unit : mm

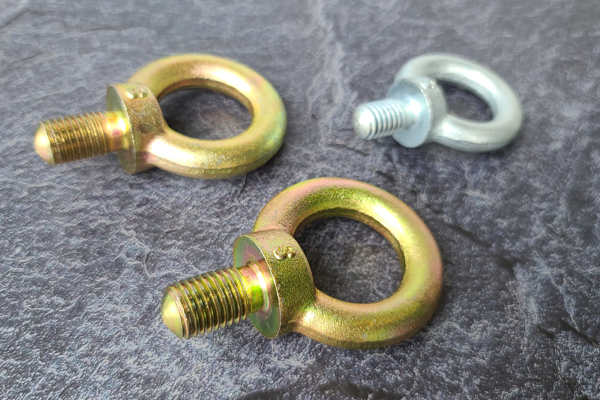

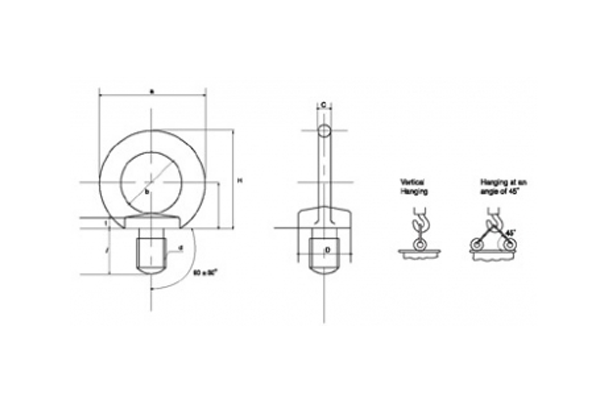

Nominal size(d)	a	b	c	D	t	h	H	l	Application Load(KN)
Nominal size(d)	a	b	c	D	t	h	H	l	Vertical	Angle of 45
M8	32.6	20	6.3	16	5	17	33.3	15	0.785	0.785
M10	41	25	8	20	7	21	41.5	18	1.47	1.47
M12	50	30	10	25	9	26	51.0	22	2.16	2.16
M16	60	35	12.5	30	11	30	60.0	27	4.41	4.41
M20	72	40	16	35	13	35	71.0	30	6.18	6.18
M24	90	50	20	45	18	45	90.0	38	9.32	9.32
M30	110	60	25	60	22	55	110.0	45	14.7	14.7
M36	133	70	31.5	70	26	65	131.5	55	22.6	22.6
M42	151	80	35.5	80	30	75	150.5	65	33.3	33.3
M48	170	90	40	90	35	85	170	70	44.1	44.1
M64	210	110	50	110	42	105	210.0	90	88.3	88.3
M80x6	266	140	63	130	50	130	263.0	105	147	147
(M90x6)	302	106	71	150	55	150	301.0	120	177	177
M100x6	340	180	80	170	60	165	335.0	130	196	196
