Unit : mm

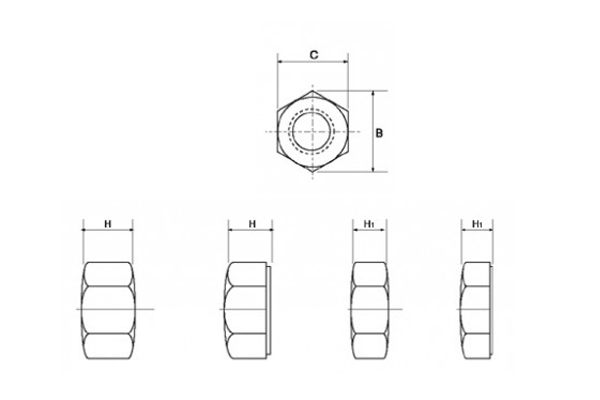

Nominal size and pitch		H				H1				B				C
Coarse	Fine	Basic	Tolerance			Basic	Tolerance			Basic	Tolerance			App
Coarse	Fine	Basic	Fin	Semi Fin	Regu	Basic	Fin	Semi Fin	Regu	Basic	Fin	Semi Fin	Regu	App
M6 x 1	-	5	0~0.36	0~0.48	±0.6	3.6	0~0.3	0 ~ 0.48	±0.6	10	0~0.2	0~0.6	0~0.6	11.5
M8 x 1.25	M8 x 1	6.5	0~0.38	0~0.58	±0.8	5				13	0~0.25	0~0.7	0~0.7	15
M10 x 1.5	M10 x 1.25	8				6				17	0~0.25	0~0.7	0~0.7	19.6
M12 x 1.75	M12 x 1.25	10				7	0~0.36	0~0.58	±0.8	19	0~0.35	0~0.8	0~0.8	21.9
(M14 x 2.0)	(M14 x 1.5)	11	0~0.43 0~0.52	0~ 0.70 0~0.87	±0.9 ±1.0	8				22				25.4
M16 x 2	M16 x 1.5	13				10				24				27.7
(M18 x 2.5)	(M18 x 1.5)	15				11	0~0.43	0~0.70	±0.9	27				31.2
M20 x 2.5	M20 x 1.5	16				12				30				34.6
(M22 x 2.5)	(M22 x 1.5)	18				13				32	0~0.4	0~1.0	0~1.0	37
M24 x 3	M24 x 2	19				14				36				41.6
(M27 x 3)	(M27 x 2)	22				16				41				47.3
M30 x 3.5	M30 x 2	24				18				46				53.1
(M33 x 3.5)	(M33 x 2)	26				20	0~0.52	0~0.84	±1.0	50				57.7
M36 x 4	M36 x 3	29				21				55	0~0.45	0~1.2	0~1.2	63.5
(M39 x 4)	(M39 x 3)	31	0~0.62	0~1.0	±1.2	23				60				69.3
M42 x 4.5	-	34				25				65				75
(M45 x 4.5)	-	36				27				70				80.8
M48 x 5	-	38				29				75				86.5
(M52 x 5)	-	42				31	0~0.62	0~1.0	±1.2	80				92.4
M56 x 5.5	-	45				34				85	0~0.55	0~1.4	0~1.4	96.1
(M60 x 5.5)	-	48				36				90				104
M64 x 6	-	51	0~0.74	0~1.2	±1.5	38				95				110
(M68 x 6)	-	54				40				100				115
-	M72 x 6	58				42				105				121
-	(M76 x 6)	61				46				110				127
-	M80 x 6	64				48				115				133
-	(M85 x 6)	68				50				120				139
-	M90 x 6	72				54	0~0.74	0~1.2	±1.5	130	0~0.65	0~1.6	0~1.6	150
-	(M95 x 6)	76				57				135				156
-	M100 x 6	80				60				145				167
-	M110 x 6	88	0~0.87	0~1.4	±1.8	65				155				179
-	(M120 x 6)	96	0~0.87	0~1.4	±1.8	72				170				196
