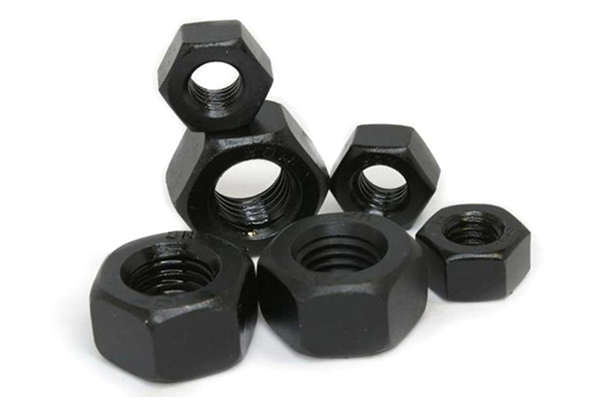

Nominal Nut dia and Thread Pitch | S | E | M | |||
---|---|---|---|---|---|---|

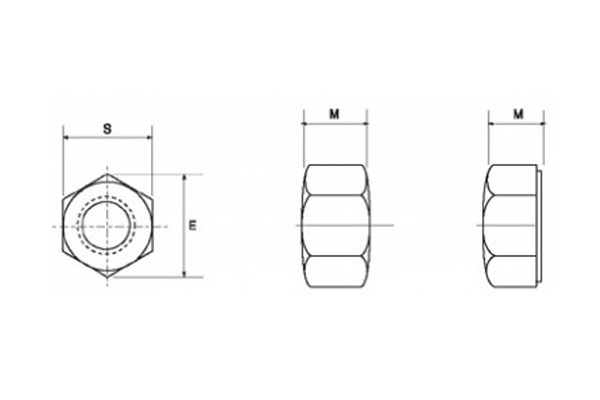

Width Across Flats | Width Across Corners | Thickness | ||||
Max | Min | Max | Min | Max | Min | |
M12 x 1.75 | 21.00 | 20.16 | 24.25 | 22.78 | 12.3 | 11.9 |
M14 x 2 | 24.00 | 23.16 | 27.71 | 26.17 | 14.3 | 13.6 |
M16 x 2 | 27.00 | 26.16 | 31.18 | 29.56 | 17.1 | 16.4 |
M20 x 2.5 | 34.00 | 33.00 | 39.26 | 37.29 | 20.7 | 19.4 |
M22 x 2.5 | 36.00 | 35.00 | 41.57 | 38.55 | 23.6 | 22.3 |
M24 x 3 | 41.00 | 40.00 | 47.34 | 45.20 | 24.2 | 22.9 |
M27 x 3 | 46.00 | 45.00 | 53.12 | 50.85 | 27.6 | 26.3 |
M30 x 3.5 | 50.00 | 49.00 | 57.74 | 55.37 | 30.7 | 29.1 |
M36 x 4 | 60.00 | 58.80 | 69.28 | 66.44 | 36.6 | 35.0 |
M42 x 4.5 | 70.00 | 67.90 | 80.83 | 77.41 | 42.0 | 40.4 |
M48 x 5 | 80.00 | 77.60 | 92.38 | 88.46 | 48.0 | 46.4 |
M56 x 5.5 | 90.00 | 87.20 | 103.92 | 99.41 | 58.0 | 54.1 |
M64 x 6 | 100.00 | 96.80 | 115.47 | 110.35 | 64.0 | 62.1 |
M72 x 6 | 110.00 | 106.40 | 127.02 | 121.30 | 72.0 | 70.1 |
M80 x 6 | 120.00 | 116.00 | 138.56 | 132.24 | 80.0 | 78.1 |
M90 x 6 | 135.00 | 130.50 | 155.88 | 148.77 | 90.0 | 87.8 |
M100 x 6 | 150.00 | 145.00 | 173.21 | 165.30 | 100.0 | 97.8 |
Nominal Size or Basic Major dia o2 Thread | S | E | M | ||||||
---|---|---|---|---|---|---|---|---|---|
Width Across Flats | Width Across Corners | Thickness | |||||||
Basic | Max | Min | Max | Min | Basic | Max | Min | ||
1/4 | 0.2500 | 1/2 | 0.500 | 0.488 | 0.577 | 0.556 | 15/64 | 0.250 | 0.218 |
5/16 | 0.3125 | 9/16 | 0.562 | 0.546 | 0.650 | 0.622 | 19/64 | 0.314 | 0.280 |
3/8 | 0.3750 | 11/6 | 0.688 | 0.669 | 0.764 | 0.763 | 26/64 | 0.377 | 0.341 |
7/16 | 0.4375 | 3/4 | 0.728 | 0.728 | 0.866 | 0.830 | 27/64 | 0.441 | 0.403 |
1/2 | 0.5000 | 7/8 | 0.875 | 0.850 | 1.010 | 0.969 | 31/64 | 0.504 | 0.464 |
9/16 | 0.5625 | 15/16 | 0.938 | 0.909 | 1.083 | 1.037 | 35/64 | 0.568 | 0.526 |
5/8 | 0.6250 | 1-1/16 | 1.062 | 1.031 | 1.227 | 1.175 | 39/64 | 0.631 | 0.587 |
3/4 | 0.7500 | 1-1/4 | 1.250 | 1.212 | 1.443 | 1.382 | 47/64 | 0.758 | 0.710 |
7/8 | 0.8750 | 1-7/16 | 1.438 | 1.394 | 1.660 | 1.589 | 55/64 | 0.885 | 0.833 |
1 | 1.0000 | 1-5/8 | 1.625 | 1.575 | 1.876 | 1.796 | 63/64 | 1.012 | 0.956 |
1-1/8 | 1.1250 | 1-13/16 | 1.812 | 1.756 | 2.093 | 2.002 | 1-7/64 | 1.139 | 1.079 |
1-1/4 | 1.2500 | 2 | 2.000 | 1.938 | 2.309 | 2.209 | 1-7/32 | 1.251 | 1.187 |
1-3/8 | 1.3750 | 2-3/16 | 2.188 | 2.119 | 2.526 | 2.416 | 1-11/64 | 1.378 | 1.310 |
1-1/2 | 1.5000 | 2-3/8 | 2.375 | 2.300 | 2.742 | 2.622 | 1-15/32 | 1.505 | 1.433 |
1-5/8 | 1.6250 | 2-9/16 | 2.562 | 2.481 | 2.959 | 2.828 | 1-19/32 | 1.632 | 1.556 |
1-3/4 | 1.7500 | 2-3/4 | 2.750 | 2.662 | 3.175 | 3.035 | 1-23/32 | 1.759 | 1.679 |
1-7/8 | 1.8750 | 2-15/16 | 2.938 | 2.844 | 3.392 | 3.242 | 1-27/32 | 1.886 | 1.802 |
2 | 2.0000 | 3-1/8 | 3.125 | 3.025 | 3.608 | 3.449 | 1-31/32 | 2.013 | 1.925 |
2-1/4 | 2.2500 | 3-1/2 | 3.500 | 3.388 | 4.041 | 3.662 | 2-13/64 | 2.251 | 2.155 |
2-1/2 | 2.5000 | 3-7/8 | 3.875 | 3.750 | 4.474 | 4.275 | 2-29/64 | 2.505 | 2.401 |
2-3/4 | 2.7500 | 4-1/4 | 4.250 | 4.112 | 4.907 | 4.688 | 2-45/64 | 2.759 | 2.647 |
3 | 3.0000 | 4-5/8 | 4.625 | 4.475 | 5.304 | 5.102 | 2-61/64 | 3.013 | 2.893 |
3-1/4 | 3.2500 | 5 | 5.000 | 4.838 | 5.774 | 2.515 | 3-3/16 | 3.252 | 3.124 |
3-1/2 | 3.5000 | 5-3/8 | 5.375 | 5.200 | 6.207 | 5.928 | 3-7/16 | 3.506 | 3.370 |
3-3/4 | 3.7500 | 5-3/4 | 5.750 | 5.562 | 6.640 | 6.341 | 3-11/16 | 3.760 | 3.616 |
4 | 4.0000 | 6-1/8 | 6.125 | 5.925 | 7.073 | 6.755 | 3-15/16 | 4.014 | 3.862 |
