Anchors

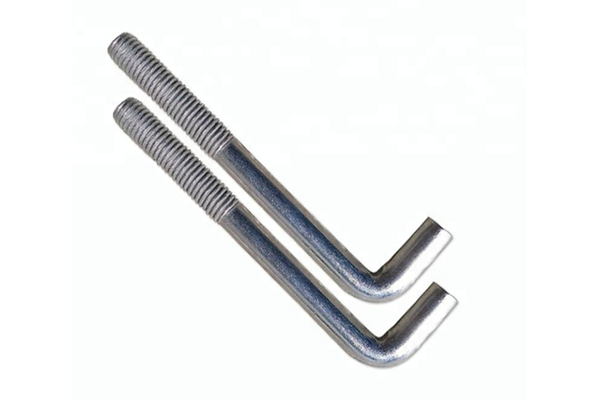

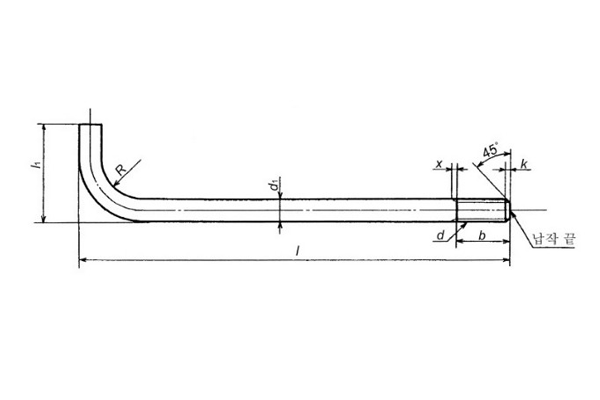

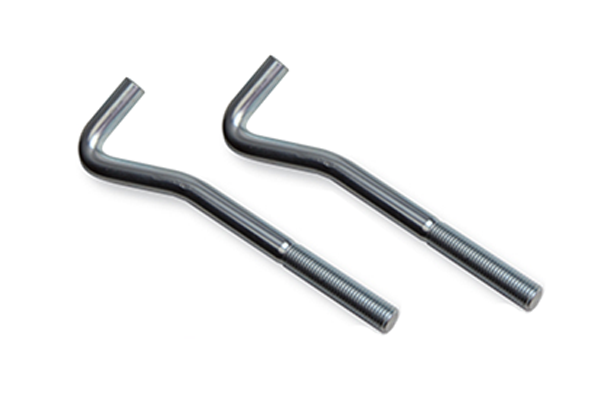

L-type Anchor

unit : mm
Screw Nominal d d1 b I2 R k
Dimensional Standards Tolerance Dimensional Standards Tolerance (About) (About) (About)
M10 10 ±0.4 25 +6.3
0
40 20 1.5
M12 12 32 +8
0
50 25 2
M16 16 ±0.5 40 63 32 2
M20 20 50 80 40 2.5

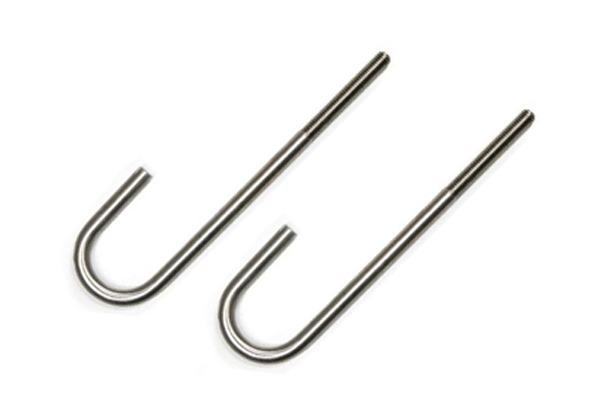

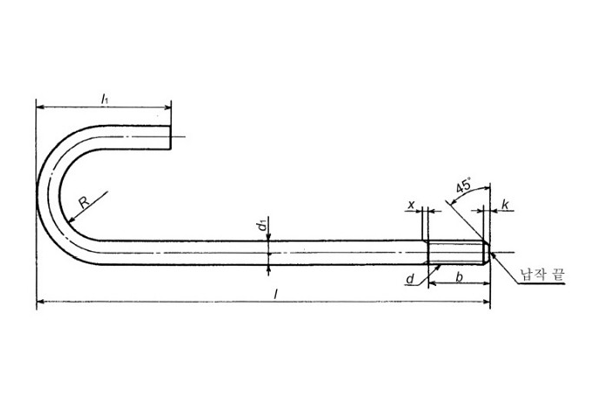

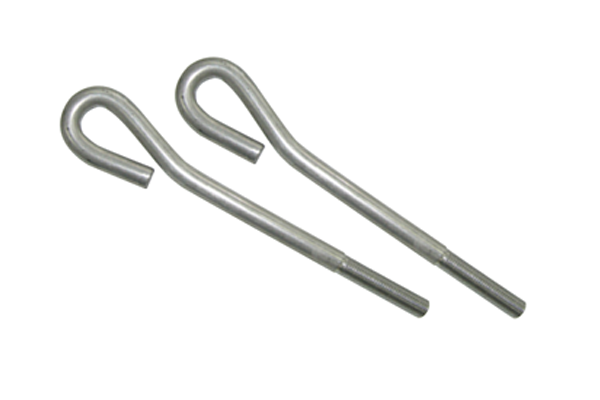

J-type Anchor

unit : mm
Screw Nominal d d1 b I1 R k
Dimensional Standards Tolerance Dimensional Standards Tolerance (About) (About) (About)
M10 10 ±0.4 25 +6.3
0
45 20 1.5
M12 12 32 +8
0
56 25 2
M16 16 ±0.5 40 71 32 2
M20 20 50 90 40 2.5
M24 24 63 +10
0
112 50 3
M30 30 ±0.6 80 140 63 3.5
M36 36 ±0.7 90 160 71 4
M42 42 ±0.8 112 200 90 4.5
M48 48 ±0.9 125 +12.5
0
224 100 5

LA-type Anchor

unit : mm
Screw Nominal d d1 b I1 a R k
Dimensional Standards Tolerance Dimensional Standards Tolerance (About) (About) (About) (About)
M8 8 ±0.4 20 +6.3
0
32 41 8 1.2
M10 10 30 40 51 10 1.5
M12 12 35 +0.8
0
50 64 12 2
M16 16 ±0.5 40 63 81 16 2
M20 20 50 80 102 20 2.5
M24 24 80 +10
0
100 127 24 3
M30 30 ±0.6 90 125 158 30 3.5
M36 36 ±0.7 110 140 181 36 4
M42 42 ±0.8 125 180 226 42 4.5
M48 48 ±0.9 150 +12.5
0
200 252 48 5

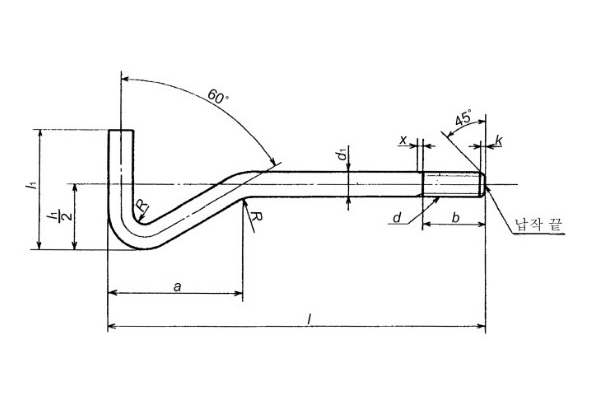

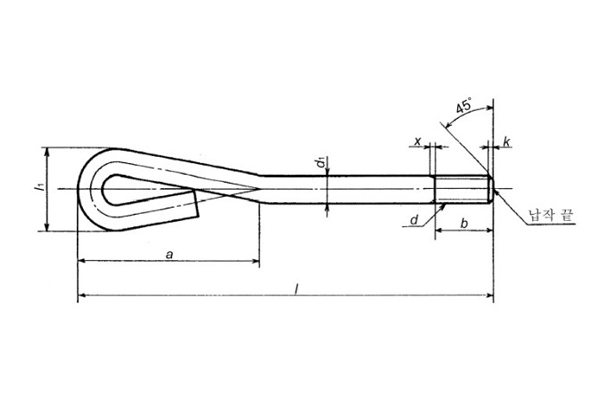

JA-type Anchor

unit : mm
Screw Nominal d d1 b I1 a k
Dimensional Standards Tolerance Dimensional Standards Tolerance (About) (About) (About)
M10 10 ±0.4 30 +6.3
0
35 50 1.5
M12 12 35 +8
0
40 65 2
M16 16 ±0.5 40 55 85 2
M20 20 50 70 105 2.5
M24 24 80 +10
0
80 125 3
M30 30 ±0.6 90 100 155 3.5
M36 36 ±0.7 110 120 190 4
M42 42 ±0.8 125 140 220 4.5
M48 48 ±0.9 150 +12.5
0
160 250 5

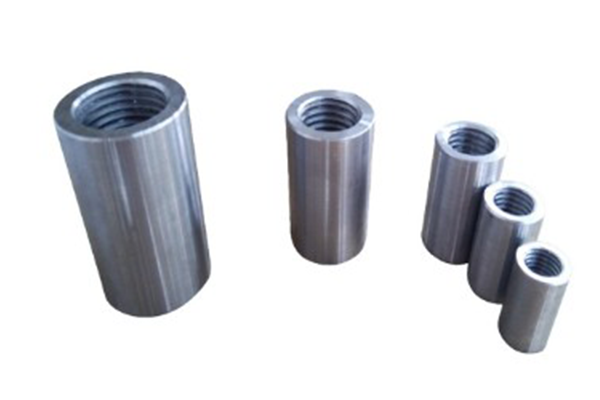

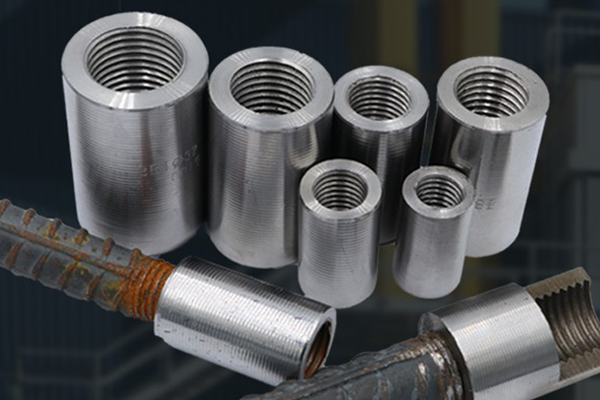

Anchor Coupler
