Product

Others 2

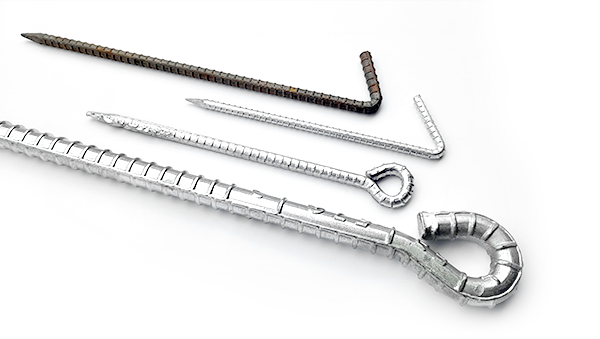

Steel Bar Anchors

• Customizable by size
• Plating Type: Natural color, white, silver, Hot Dip Galvanize

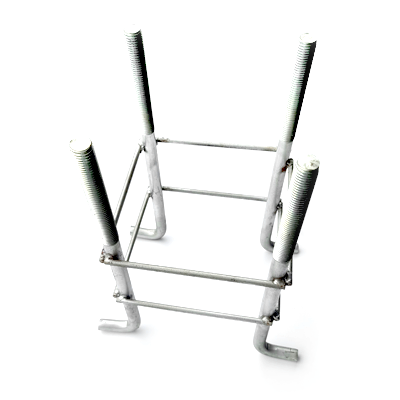

L-type Anchor Square Processing

• Can be processed to match base plate size

Bolt Cap (Nut Cap)

Bolt Cap LONGCAP 1NUT

•
  M12
•
  M14
•
  Mini Long M16
•
  M16
•
  M18
•
  M19
•
  M20
•
  M22
•
  M24
•
  M25
•
  M27
•
  M28
•
  M30
•
  M32
•
  M36
•
  M39
•
  M42
•
  M45
•
  M48
•
  M56
•
  M75

Bolt Cap LONGCAP 2NUT

•
  M12
•
  M16
•
  M18
•
  M19
•
  M20
•
  M22
•
  M24
•
  M25
•
  M28
•
  M30
•
  M32
•
  M36
•
  M39
•
  M42
•
  M45
•
  M48
•
  M56

SMALLCAP

•
  M6
•
  M8
•
  M9
•
  M10
•
  M12
•
  M14
•
  M16
•
  M18
•
  M19
•
  M20
•
  M22
•
  M24
•
  M25

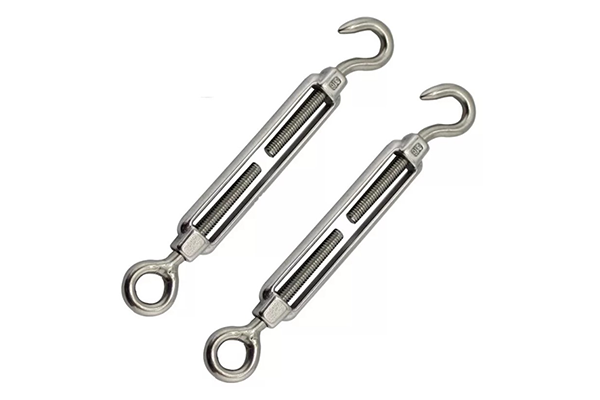

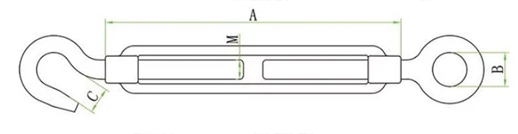

Turn Buckle

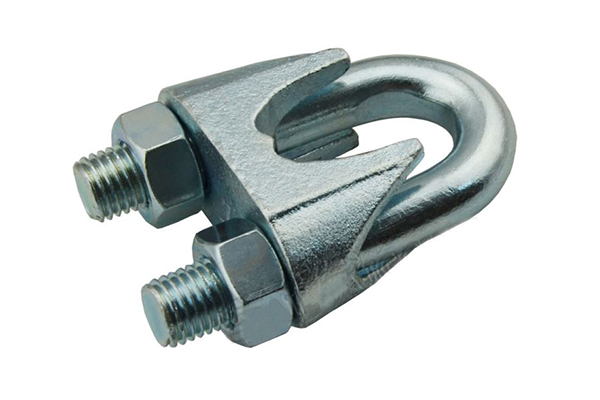

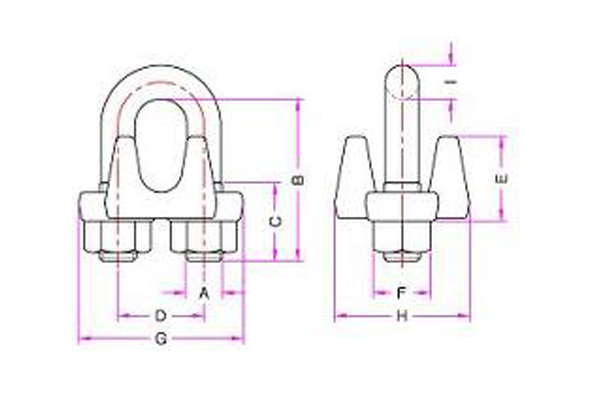

Wire Rope Clip

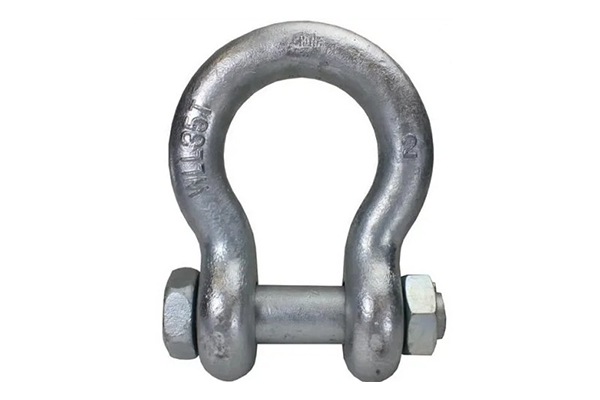

Shackle

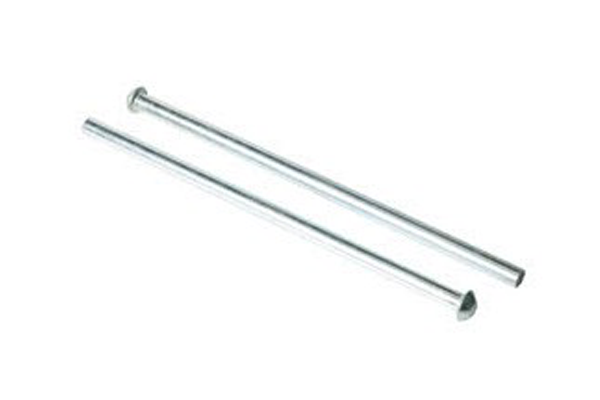

Various Round Bars

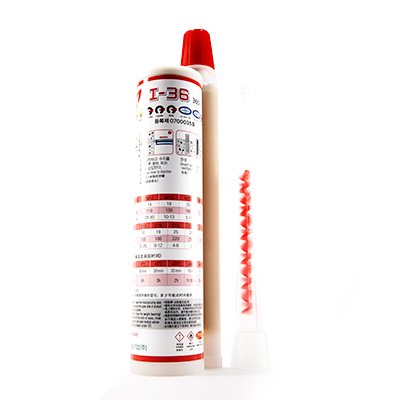

Chemicals

• Injection

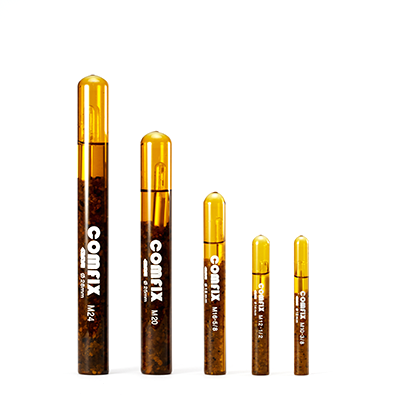

• Capsule

Characteristics & Benefits

• Cartridge-type makes installation easy.
• Binds well with metal and concrete, and bears high loads.
• Shows perfect resistance to alkalic concrete components.
• Can be used on various base material types such as hallow clay block, masonry brick, bedrock etc.
• Compared to metal anchors, it does not expand and cause fatigue to the base material and is highly resistant to vibration and dynamic load.
• It can be installed near corners, and installed with minimum anchor gap.
• It is not affected by pre-bored diameter and depth, and can be used for installing various types of anchors

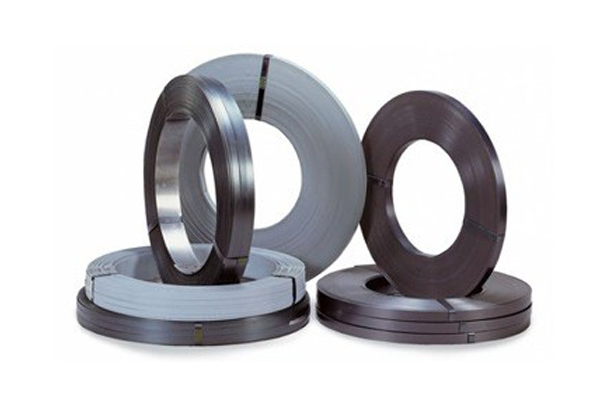

Steel Band

Physical Properties by Material

• SAE1015 (Standard): Tensile strength 75~82kgf/mm2; Elongation rate 2~3%
• SAE1022 (High Strength): Tensile strength 83~88kgf/mm2; Elongation rate 3~5%

Usage

• Various steel coils, wire rods, plates, pipes, various steel products, wood, export wood packaging, others etc.

Sales Standard

• (W)16mm x (T)0.5mm, 0.6mm
• (W)19mm x (T)0.7mm, 0.8mm, 0.9mm
• (W)25mm x (T)0.7mm, 0.8mm, 0.9mm
• (W)32mm x (T)0.8mm, 0.9mm, 1.0mm

Product Weight

• Width 19mm or less: Bundle weight 25kg each, two coils each
• Width 25mm or less: 38kg, 45kg, single coil weight

Surface Finish

• Blue (Unpainted), zinc, other painted products

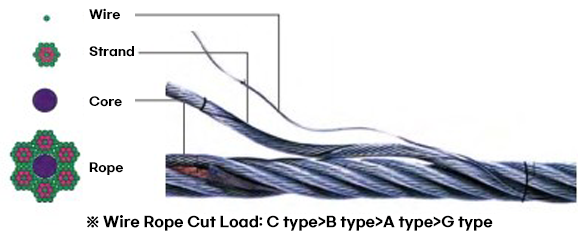

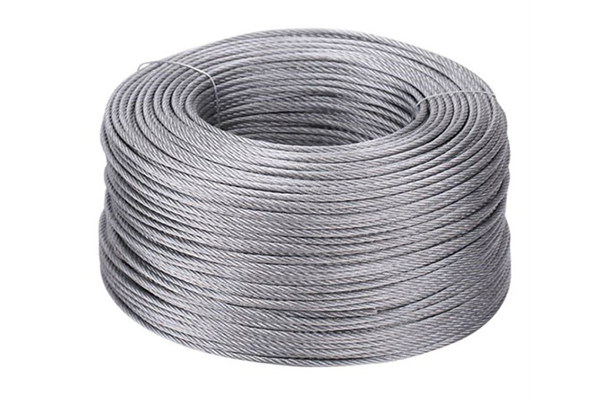

Wire
